Xperia Arc: Flash CyanogenMod 9

Category : Tech May 31st, 2012

Been a year with Xperia Arc, is time to unlock booatloader and install CyanogenMod custom rom, the latest CyanogenMod 9 (based on Android 4.x Ice Cream Sandwich).

Thanks to Free Xperia Team from XDA Developers forum that putting hardwork and keep rolling out updates to make sure CyanogenMod works good on Xperia handset. Below are brief explanation on steps to install CyanogenMod 9 on Sony Ericsson Xperia Arc (LT15i).

Tools and Backup:

  • Need a PC and USB Cable to unlock, flash, file transfer
  • Do Back-Up, flashing progress will wipe all your data
  • CM 9.0 is still in progress, some function are not working yet, refer HERE
  • Treat this post as an extra, your main master guide will be: “Sony Ericsson Xperia Arc: Full Update Guide”
  • Preparation and Steps:

      i) Speed reading through these sites:

  • Wiki cyanogenmod: Howto: Install the Android SDK
  • Wiki cyanogenmod: Fastboot
  • Wiki cyanogenmod: Sony Ericsson Xperia Arc: Full Update Guide
  • XDA developers: {ARC/ARC S}[DEVELOPMENT] -FXP120- CM9.0 – FreeXperia Project
  •   ii) Downloads (These are whatever i downloaded to make it done)

  • Android SDK:
  • Google USB Driver for CM9.0 supported devices:
  • fastboot_with_Android_USB_file.rar
  • drivers.rar
  • CyanogenMod 9.0 RC0
  • CyanogenMod 9.0 Google Application Add-on:

  •   iii) Sequences in brief (Detail steps refer to the links attached)

  • Install Android SDK by following this site: Howto: Install the Android SDK
  • Get the Fastboot: Fastboot
  • Unlock Bootloader: Sony Ericsson Xperia Arc: Full Update Guide
  • Flash the phone: Sony Ericsson Xperia Arc: Full Update Guide
  • For application downloads: Freeware Lovers: alternative Android apps download Site
  • Minor Problems:

    Have met few small problems during progress, i just Google-ed out solutions and replaced some file that can be found (which included on “Downloads” section above). Problems such as:

  • During SDK installation, i left out Google USB Driver install, therefore met problems in next stages.

  • Since i have trouble on SDK, i refer to this site too: What Is ADB And How To Install It With Android SDK

  • Replaced C:\android-sdk-windows\extras\google driver with usb_driver

  • when click on menu button to connect via pc, it asked to instal Android adb Interface
    adb Driver for xperia Arc. i downloaded this and direct windows to the folder and install

  • Fastboot not working in my terminal (cmd mode), downloaded fastboot_with_Android_USB_file.rar and copy all (fastboot.exe, AdbWinApi.dll and AdbWinUsbApi.dll) in C:\android-sdk-windows\tools

  • img boot, need to type full HDD address in terminal. In my case, my boot.img is in D:\Xperia Arc Flash\CM 9, so i typed this in terminal: fastboot -i 0xfce flash boot D:\Xperia Arc Flash\CM 9\boot.img

  • Boot device into bootloader: in arc, Press & hold the Menu button while connecting the Sony Ericsson Xperia Arc to the computer, it will display Blue color on LED Notification light

  • ClockworkMod Recovery: typed “fastboot -i 0xfce reboot“, i pressed side Volume Rocker after the “Free Xperia Project” screen, so it doesn’t boot in ClockworkMod Recovery. Should pressed side Volume Rocker before or during the “Free Xperia Project” screen

  • Photos during progress:

    Inside SDK Folder

    Inside SDK platform-tools folder

    Inside SDK tools folder

    Unlock Bootloader Key

    Unlocking Bootloader

    Flashing boot.img

    ClockworkMod Recovery

    Wipe Data


    Installation complete

    Firmware version

    Downloaded Clock widget

    DIGI Samsung GALAXY SIII Roadshow

    Category : Pieces May 30th, 2012

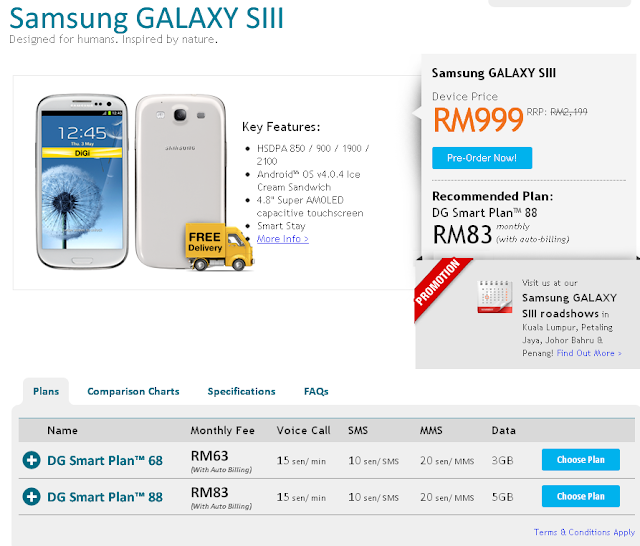

    DIGI started taking Pre-Order for Samsung GALAXY SIII (same as Celcom, only Marble White unit available) from as low as RM 999, as below:
